Visual documentation, measurement and telemetry

Telemetry

Transmitter S Band Video and Data 10 Watts +S Band Airborne Antennae (switchable frequencies 10 preset)

Transmitter S Band Video 1 Watt +S Band Airborne Antennae for special tests and Lab tests

Ground Tracing Antenna with full Capability Receiving data up to 20 Mb/sec Gain 19 dB, (range 100 Km +) built in multichannel user selectable frequency, UHF, S and C band 400 to 6000 MHz internal Bit Sync, Decommutator for data reduction.

High speed cameras

Analog Video Cameras SEKAI 5 units, with variety of lenses 3mm to 80 mm

Digital Video Cameras 3G SDI FHD, 60P, 6 units, with variety of lenses 3mm to 12 mm , Watec Japan

GoPro Cameras 3, 4. 10, 11, 12. 15 + Units 10 units GoPro 10

Hand Held Cameras Panasonic Digital up to 200F/Sec, Panasonic 3CCD Digital 60 Frame

Hand-Held High-Speed Camera FHD over 1000 Frame/second for ground tests

Video recorders

Analog Video Recorder Airborne, 4 Channel + Audio (RS170)

Digital Video Recorder Airborne 4 Channel + Audio (3G SDI)

GVD800 Video Recorder/player with LCD for wide platforms such as Helicopter cargo or passenger Aircrafts etc. 3 Unis (digital cassettes HI-8)

Sensors and Accelerometers

Pressure Sensors for air and liquids 0-15 PSIA, 0-30 PSIA, 0-50 PSIA, 15 PSID, 25 PSID 50 PSID. TOTAL 18 Units

Temperature Sensors (100 Ohm@ 0 Deg C) incapsulated and protected from moisture and liquids can be installed into liquid lines with proper installations. -50 to 100 Deg C, 15 units

Accelerometers for Vibration – Triaxial/Axial 100mv/g (+/- 50 g)

Accelerometers for Vibration – Triaxial/Axial 10mv/g (+/- 500 g)

Accelerometers for Loads 6 units (+/- 25 g) DC Output

For Ground tests -Vishay system 8000 supports Strain Gages, DC Voltage, RTD, Thermocouple. 3 Units total 24 Channels

SAM/DEC/008

.Ethernet based USB powered PCM decommutato

The SAM/DEC/008 decommutates IRIG-106 Ch.4 PCM streams and provides a high-speed programming link for .Acra KAM-500 systems

The unit uses a single USB 2.0 connection in the ground .station/programming PC

The PCM decommutator accepts either differential-ended , RS-422 inputs or single-ended TTL inputs

With BIØ-L codes only a single input is used

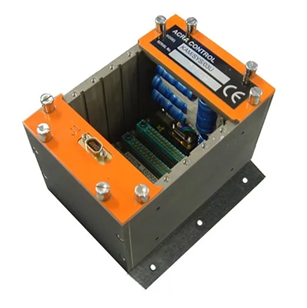

ACRA KAM-500 | Data Acquisition Systems

 Curtiss-Wright’s Acra KAM-500 data acquisition units (DAU) are airborne acquisition and transmission systems that utilize chassis with a standard backplane that accepts over 100+ user selected modules.

This highly configurable system enables fully customized systems to be built using COTS products. From their inception, the DAU’s were designed specifically to optimally balance small size with high performance to be the perfect fit for the majority of FTI and rugged data acquisition applications.

Cards

S.G Interface Cards to support up to 64 Strain Gauges (350 Ohm)

Accelerometer Interface Cards – up to 48 channels for Vibration (ICP Type)

Analog Input Card – 48 Analog DC voltage inputs (0-10VDC)

Temperature Interface Card RDT Type up to 24 Sensors

Controller Card with output for transmission (RS Levels) connected via Dedicated Unit which receives Data and Clock from the controller

Controller Card -with Ethernet Connection via ethernet line direct to Laptop

Time Code Generator Card IRIG B – GPS Receiver based, reconstructing Time and placing as defined by the user in the data stream, in addition can display basic GPS Data such as Speed, Altitude, Long-Lat position etc

Discrete Input Card -48 channels 28/Open or 28/GND

Memory Card for Data Recording -CF Type supports 64 GB. (more than sufficient for high-speed data up to 8 Hours)

VECTORNAV VN-200

The VN-200 is a miniature, high performance GNSS-Aided Inertial Navigation System (GNSS/INS) that combines 3-axis gyros, accelerometers and magnetometers, a high-sensitivity GNSS receiver, and advanced Kalman filtering algorithms to provide optimal estimates of position, velocity, and attitude.

Garmin GLOTM 2

Navigate with Garmin caliber GPS data on the mobile device of your choice

The GLO 2 receiver brings you the best of both worlds by combining GPS and GLONASS receivers with Bluetooth® wireless technology so you can enjoy precise position information on your iPad®, iPhone® or Android™ device

Geodetic Measurements

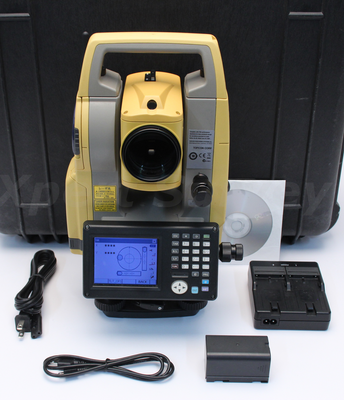

Topcon OS-105 Total Station

Perfect total station for many field applications including:

• Land Surveying Property

• Land Surveying Topo & Stakeout

• Earthwork Volumes

• Building Interior Layout

• Construction of Roads

• Law Enforcement Mapping
